BMW 320i


  Specs
 Body:
   Length - 177.48 inches (4508mm)
   Width - 63.4 inches (1610mm)
   Height - (before mods) 54.3 inches (1380mm)
   Wheelbase - 100.9 inches (2563mm)
   Weight - (before mods) 2601 lbs. (1190 kgs.)


 Gearbox:
   5-Speed Manual
   Ratios:
    1st - 3.368:1
    2nd - 2.16:1
    3rd - 1.58:1
    4th - 1.241:1
    5th - 1.0:1

 Engine:
   Type - Inline 4,single overhead cam
   Bore - 3.504 inches (89mm)
   Stroke - 3.15 inches (80mm)
   Capacity - 121.4 cubic inches (1990 cc)
   Compression Ratio - 9,3:1
   HP - 125 at 5700 RPM
   Torque - 112 ft.lbs. at 3750 RPM



 Body:
  • Nosed, Decked, & shaved rear markers.
  • 1977 Datsun 280 Z hood vents.
  • Custom fabricated fiberglass bumpers w/integrated spoiler/ground effects.
  • Tag relocated to bumper.
  • Rear wing w/third brakelight & modified ends. Believed to be Honda Civic.
  • H4 headlights (2 outside lights)
  • Smoothed door handles painted body color.
  • Custom paint. Dupont Nason base/clear. Blue: C2458 IF; Silver: 430-33 IFB Sparkle Aluminum; Red: 44459 IF Dark Firethorn (All over original White).
  • Taillights striped to match center peice.
  • Window trim, driprail, & B pillars blacked out.

 Suspension:
  • Gas charged front strut inserts.
  • 1 2/3 coils cut off front springs.
  • 15 x 7 Prime Wheels.








 Drivetrain:
  • Air conditioner compressor, condensor, & lines removed.
  • 3A Racing Stainless muffler.














Here are the most recent pics of the car:

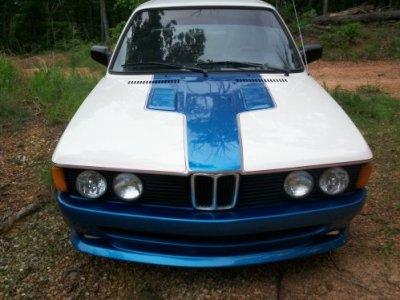

3/4 front/side pic Front pic

Hood

These last two pics wre taken while the car was inside with a flash (& before I cleaned & detailed the fenderwells - LOL) - they're not that great..

Rear pic Flame licks
